5150-5850M Wifi 14dBi Dual-Polarized Wall-Mounted 5.8 Ghz Directional Antenna 225x225x25mm

Name: 51505850M Wifi 14dBi DualPolarized WallMounted 58 Ghz Directional Antenna 225x225x25mm
Brand: Leenz
Price: 1 USD

Quality 5150-5850M Wifi 14dBi Dual-Polarized Wall-Mounted 5.8 Ghz Directional Antenna 225x225x25mm wholesale

Brand Name : Leenz

Model Number : LZANT-10746-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 5150-5850MHz

VSWR : <2.0

Peak Gain : 14dBi

Impedance : 50

Contact Now

5.8G 5150-5850M wifi 14dBi dual-polarized wall-mounted directional antenna 225x225x25mm

1. Specification

A. Electrical Characteristics
Frequency	5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	14dBi
Polarization	H+V
Horizontal Beamwidth	30±5°
Vertical Beamwidth	30±5°
F/B	>23dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	RG58U L=100cm 2*SMA-J connector
Dimension	22522525mm
Radome material	ABS
Weight	1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

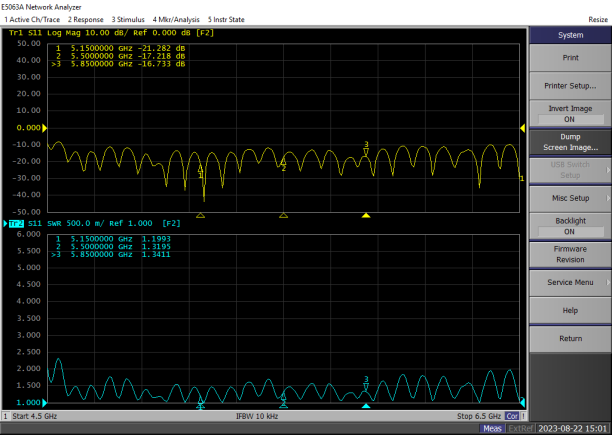

2.1 VSWR
5150-5850M Wifi 14dBi Dual-Polarized Wall-Mounted 5.8 Ghz Directional Antenna 225x225x25mm

2.2 Total Efficiency & Gain:

Port 1(水平极化)		Port 2(垂直极化)
Frequency(MHz)	Gain(dBi)	Frequency(MHz)	Gain(dBi)
5150	12.0	5150	12.2
5200	11.8	5200	12.3
5250	12.0	5250	11.8
5300	11.5	5300	12.2
5350	11.5	5350	12.3
5400	12.1	5400	12.1
5450	11.2	5450	12.5
5500	11.2	5500	12.2
5550	10.6	5550	12.3
5600	10.3	5600	12.4
5650	10.7	5650	12.3
5700	10.2	5700	12.2
5750	10.0	5750	11.9
5800	9.6	5800	11.9
5850	9.0	5850	11.6

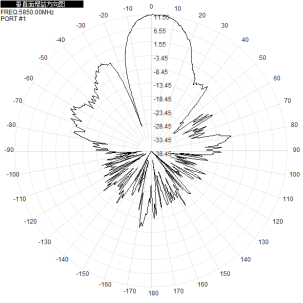

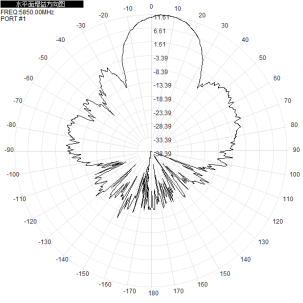

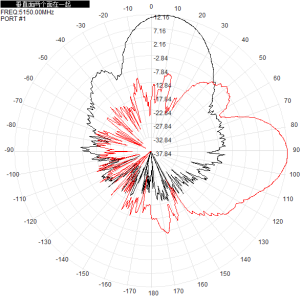

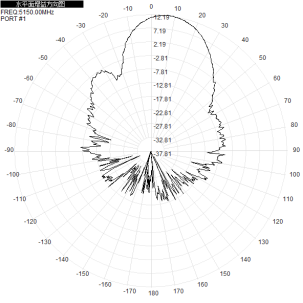

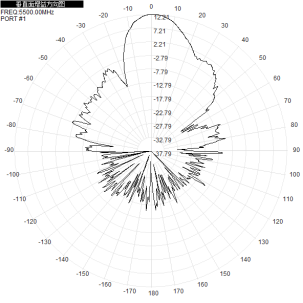

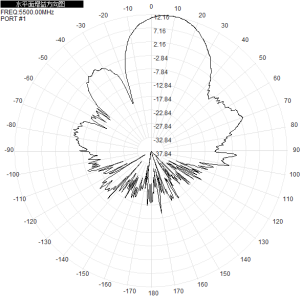

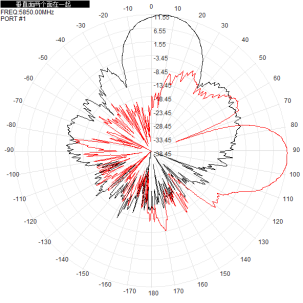

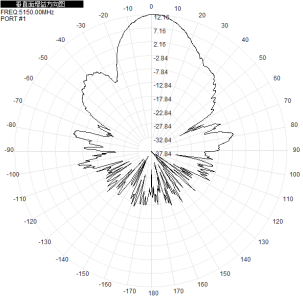

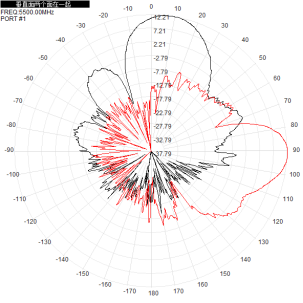

2.3 Radiation Pattern

Port	2D-Horizontal	2D-Vertical	Horizontal & Vertical
5150MHz
5500MHz
5850MHz
