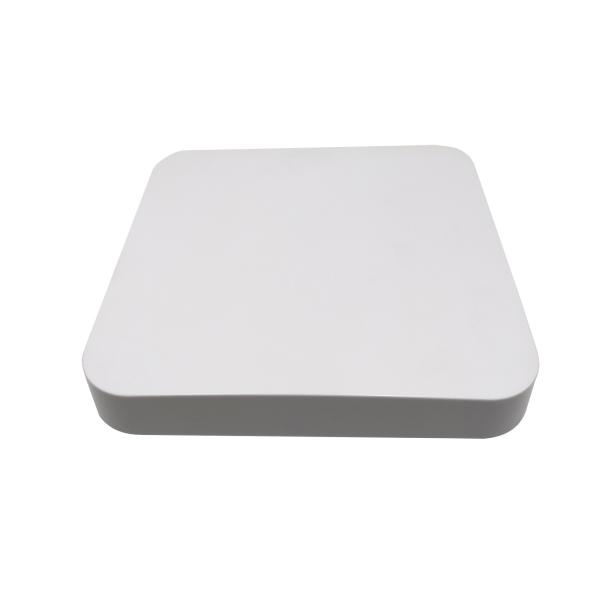

White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: White Outdoor Directional Antenna Flat Panel RFID 902928 MHz 9dBi 186x186x28
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10795-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 902-928MHz

VSWR : <1.5

Peak Gain : 9dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	902-928MHz
S.W.R.	<1.5
Antenna Gain	9dBi
Polarization	DHCP
Horizontal Beamwidth	76-78°
Vertical Beamwidth	69-73°
F/B	>15dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	18618628mm
Radome material	ABS
Weight	0.65Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

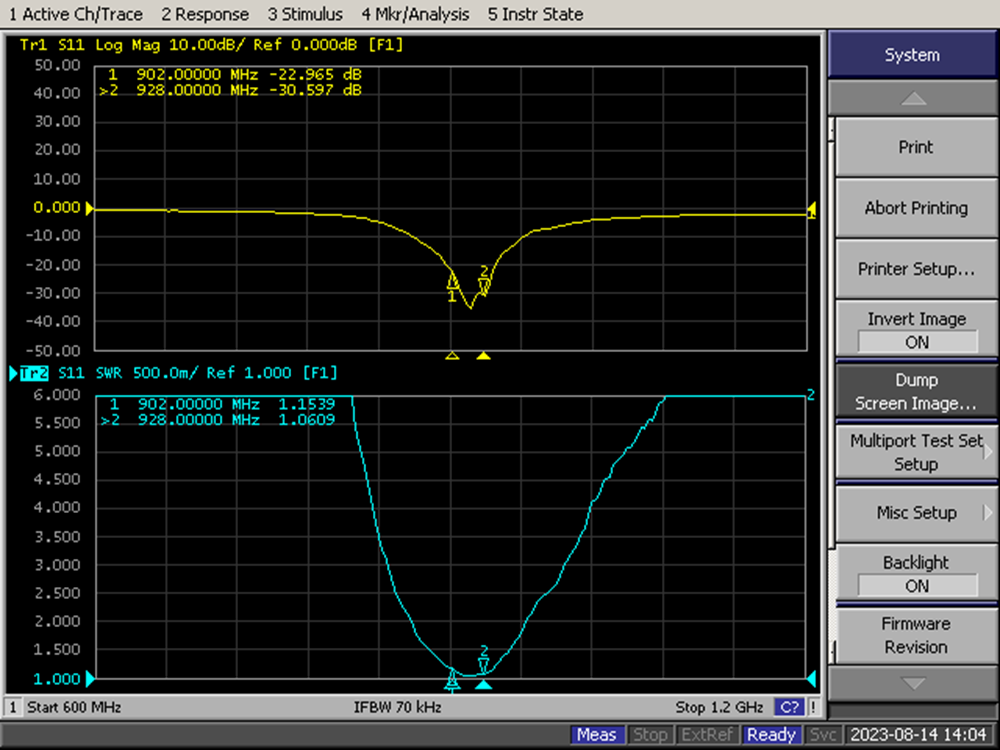

2.1 VSWR

White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28

2.2 Total Efficiency & Gain:

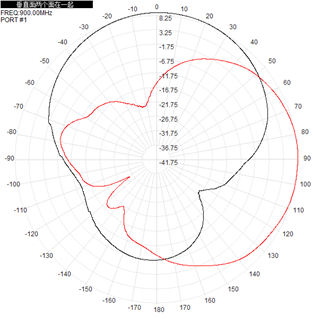

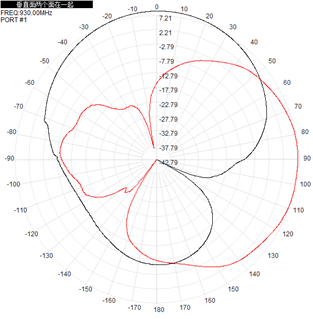

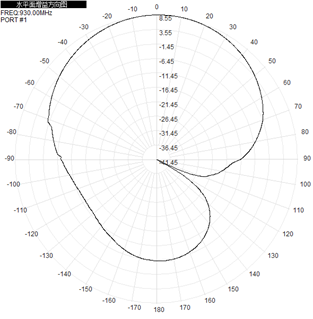

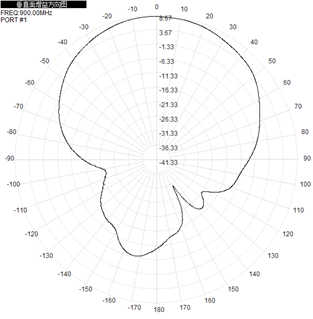

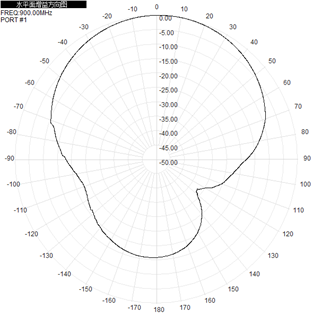

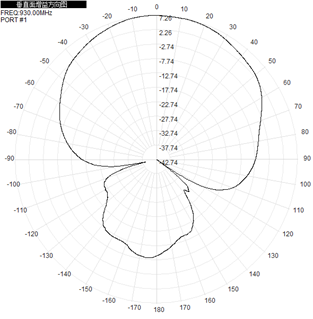

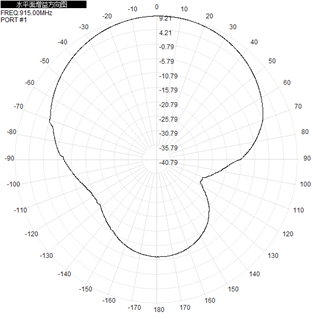

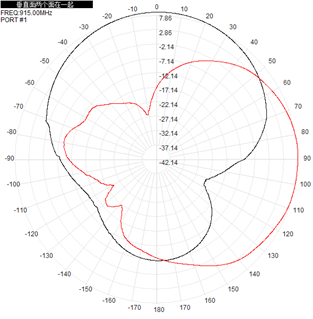

2.3 Radiation Pattern
