2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

Brand Name : Leenz

Model Number : LZANT-10805-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 200 per day

Delivery Time : 15 days

Frequency : 2400-2500/5150-5850MHz

VSWR : <2.0

Peak Gain : 10/15dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Port 1 Port 2 Port 3 Port 4
Frequency
2400-2500 2400-2500M 5150-5850M 5150-5850M
S.W.R. <= 2.0
Antenna Gain 13dBi 15dBi
Polarization V H V H
Horizontal Beamwidth 90° 30°
Vertical Beamwidth 28° 20°
F/B >21dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 4*N Female connector
Dimension 290*205*40mm
Radome material ABS
Weight 1.0Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

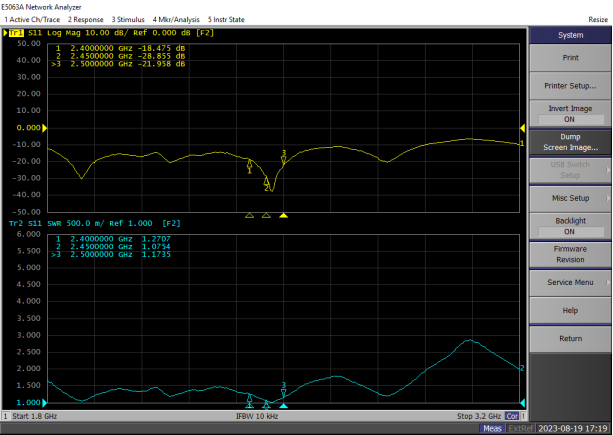

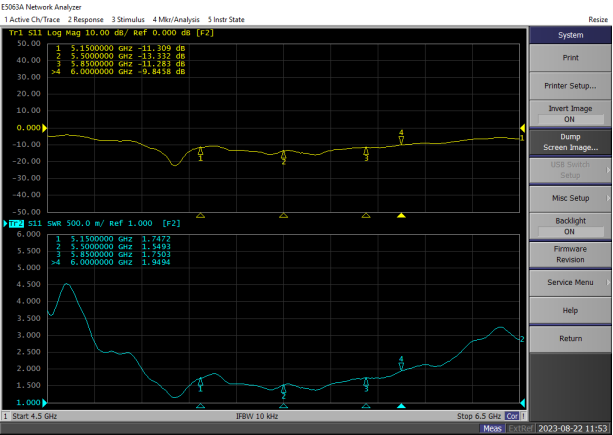

2.1 VSWR

V

2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

H

2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

V

2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

H

2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K



2.2 Total Efficiency & Gain:

Port 1 Port 2 Port 3 Port 4
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
2400 10.9 2400 10.8 5150 14.8 5150 13.4
2410 10.8 2410 10.7 5200 14.8 5200 13.6
2420 10.9 2420 11.0 5250 14.6 5250 13.3
2430 10.9 2430 10.9 5300 14.5 5300 13.5
2440 10.8 2440 10.7 5350 14.9 5350 13.6
2450 10.9 2450 10.6 5400 15.1 5400 13.9
2460 11.0 2460 10.5 5450 15.4 5450 14.6
2470 10.9 2470 10.5 5500 15.9 5500 14.3
2480 11.0 2480 10.5 5550 16.0 5550 14.3
2490 10.9 2490 10.5 5600 16.4 5600 15.0
2500 10.8 2500 10.4 5650 16.2 5650 15.5
5700 16.1 5700 15.5
5750 16.3 5750 15.6
5800 16.3 5800 15.6
5850 16.5 5850 15.8
5900 16.8 5900 16.4
5950 16.9 5950 16.9
6000 16.8 6000 16.9

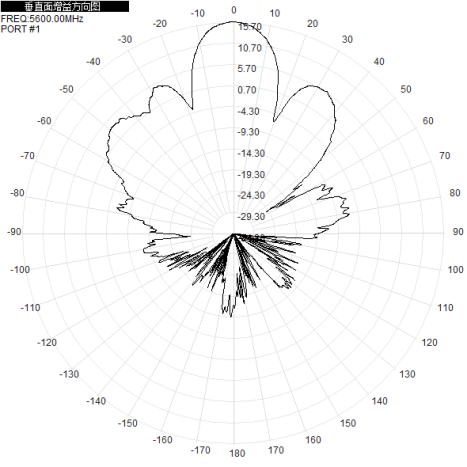

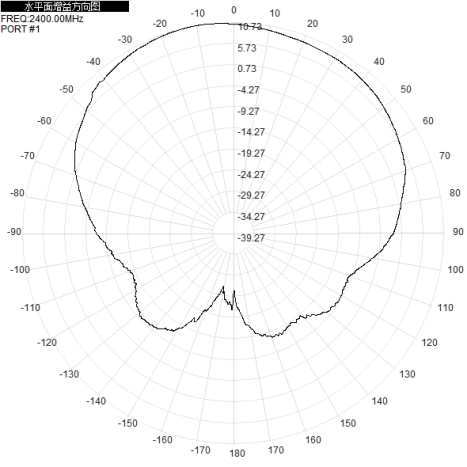

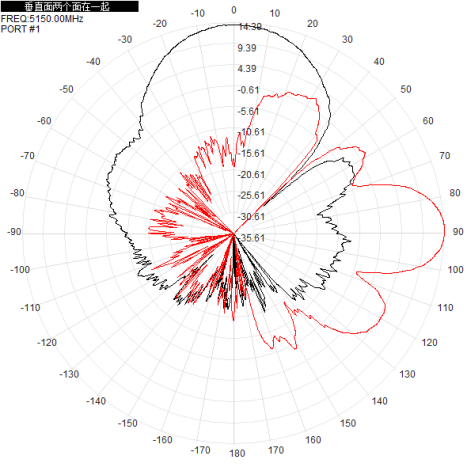

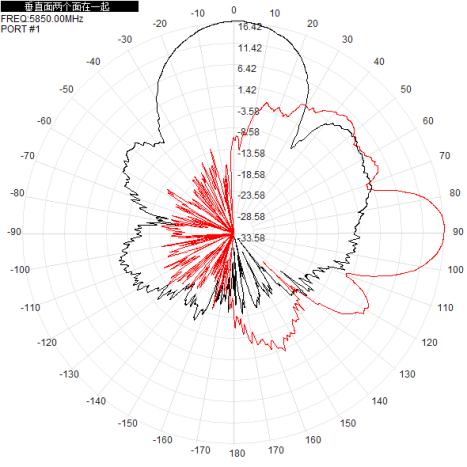

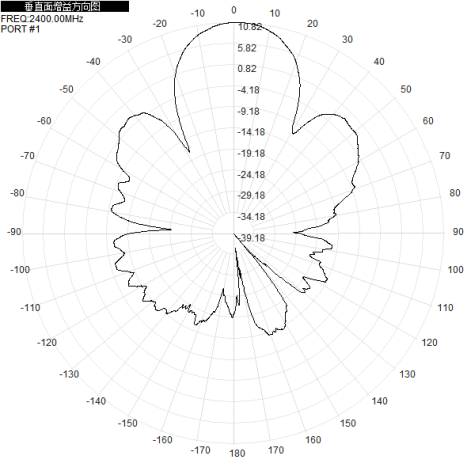

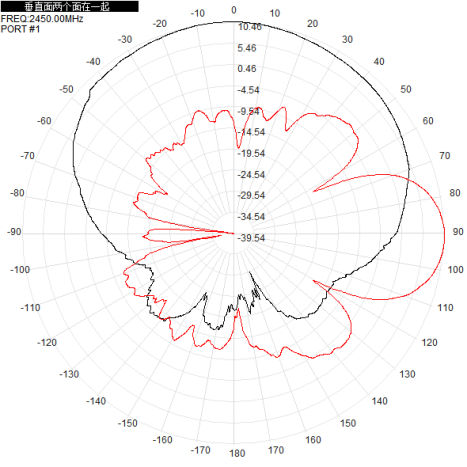

2.3 Radiation Pattern
Port1,2 2D-Horizontal 2D-Vertical Horizontal & Vertical

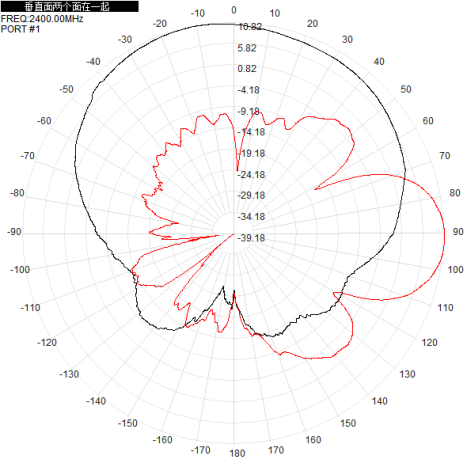

2400MHz 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K
2450MHz 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

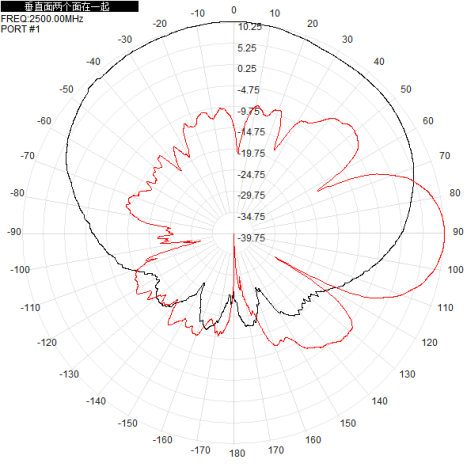

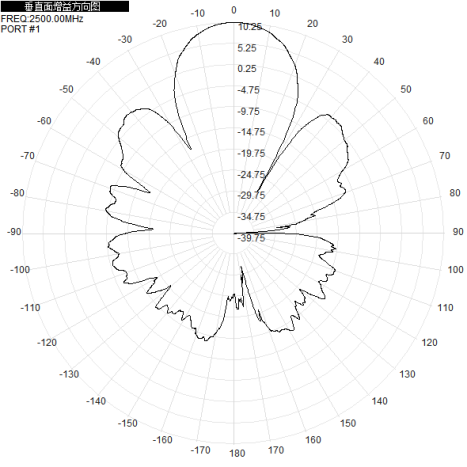

2500MHz 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

Port3.4 2D-Horizontal 2D-Vertical Horizontal & Vertical

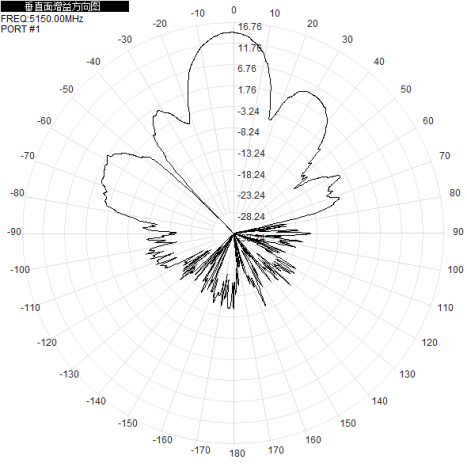

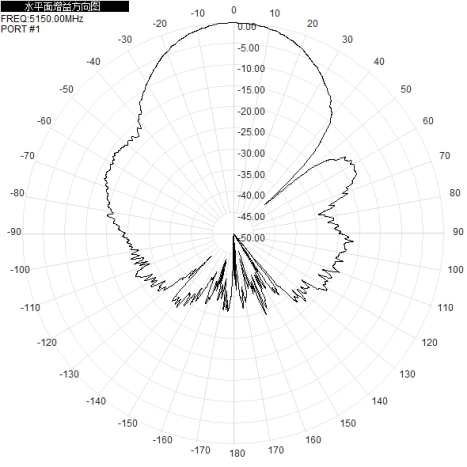

5150MHz 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

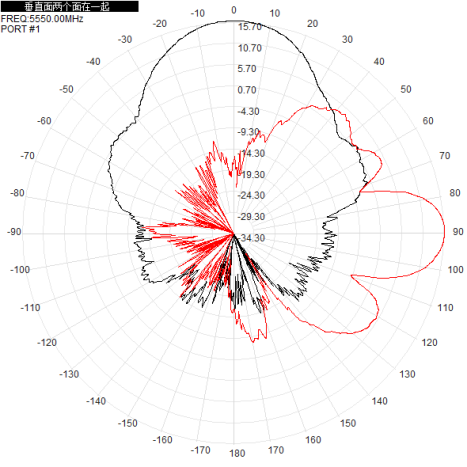

5550MHz 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

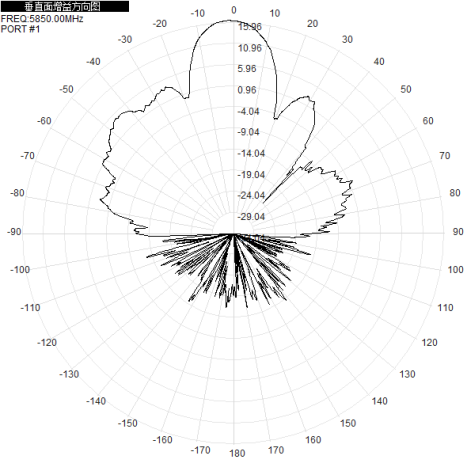

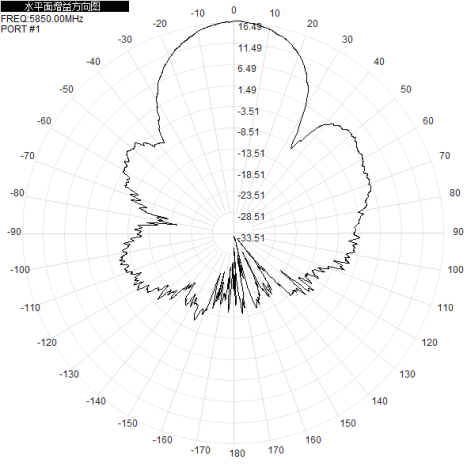

5850MHz 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K 2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K
