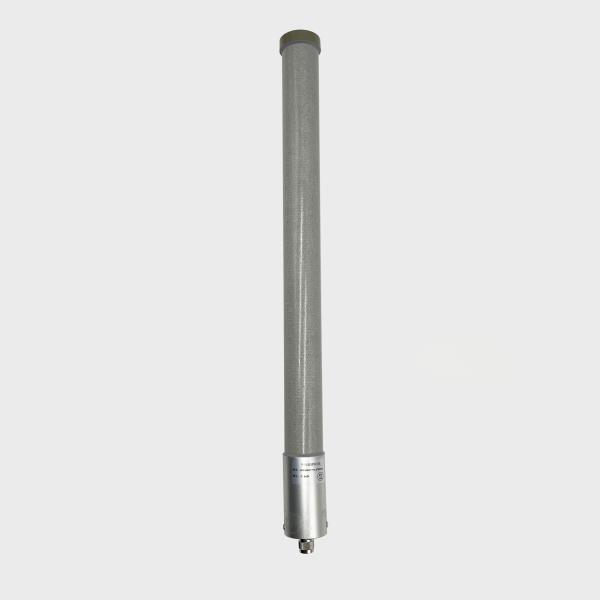

4G LTE Fiberglass 5dbi Omni Antenna 802-2700MHz 51x700

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 4G LTE Fiberglass 5dbi Omni Antenna 8022700MHz 51x700
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-11025-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 800-960MHz; 1710-2700

VSWR : <2

Peak Gain : 5dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	800-960MHz	1710-2700MHz
Impedance	50 Ohm	50 Ohm
S.W.R.	<2	<2
Gain	3-4dBi	2-5dBi
Efficiency	≈69%	≈59%
Polarization	Linear	Linear
Horizontal Beamwidth	360°	360°
Vertical Beamwidth	30-46°	25-59°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ51*700mm
Weight	0.9Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

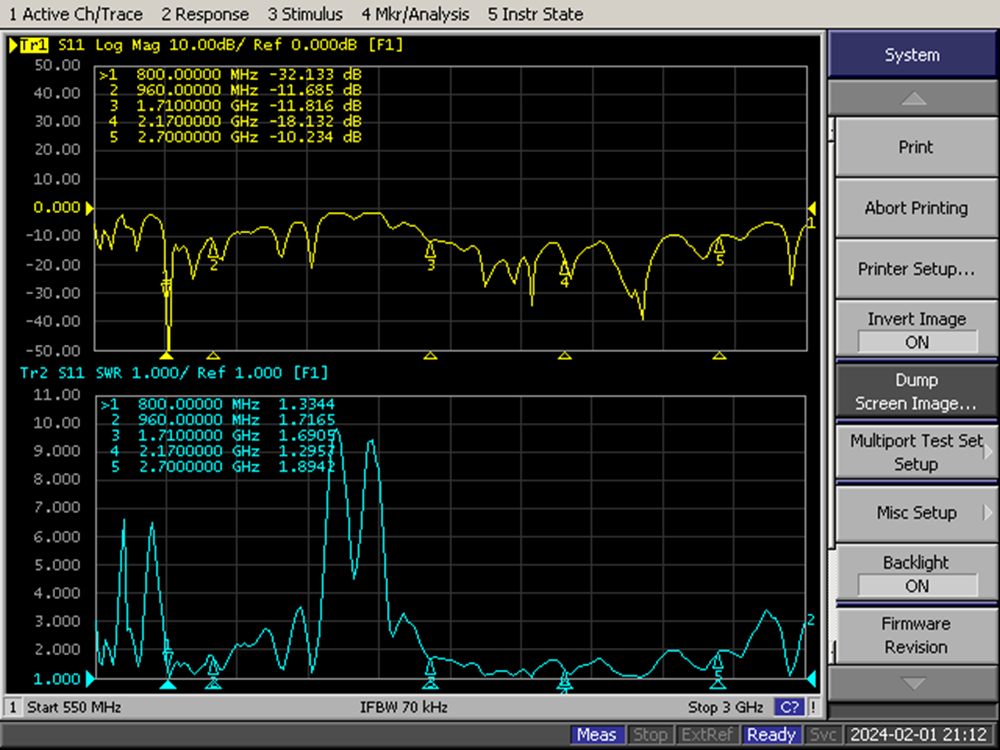

2.1 VSWR
4G LTE Fiberglass 5dbi Omni Antenna 802-2700MHz 51x700

2.2 Total Efficiency & Gain:

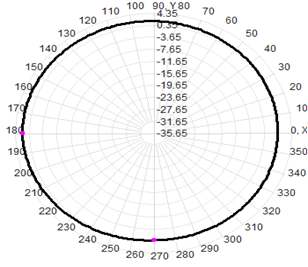

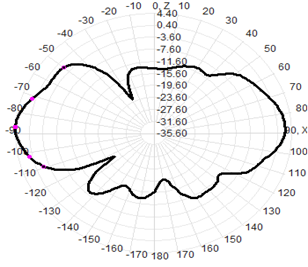

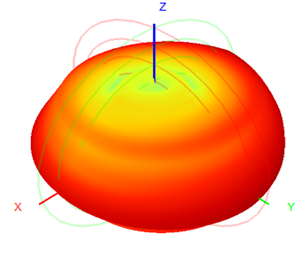

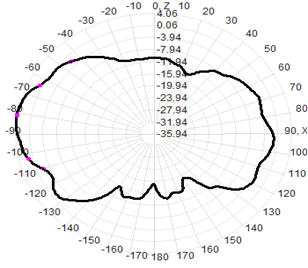

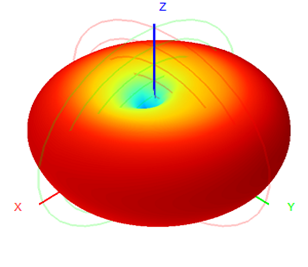

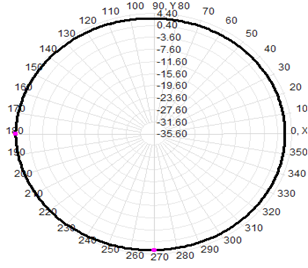

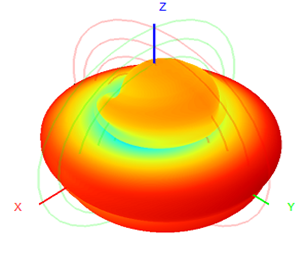

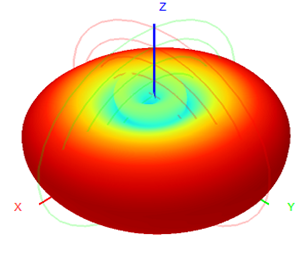

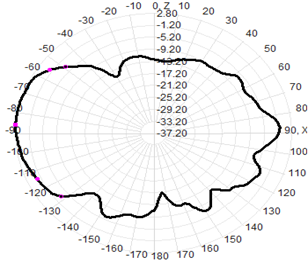

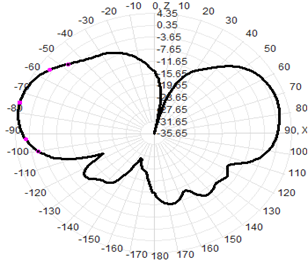

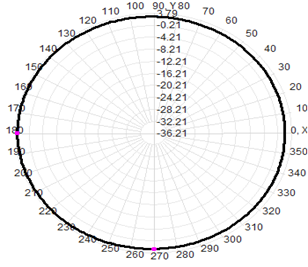

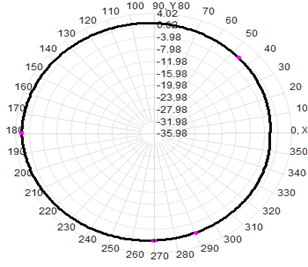

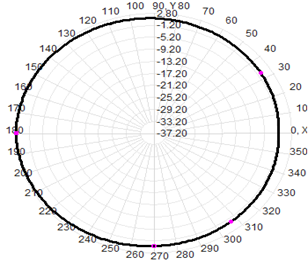

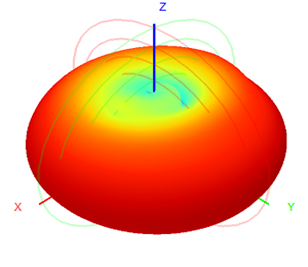

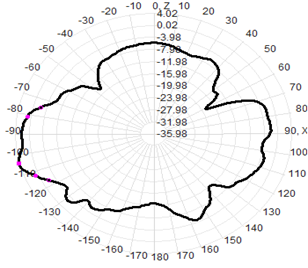

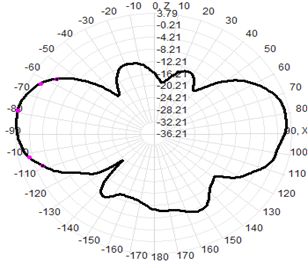

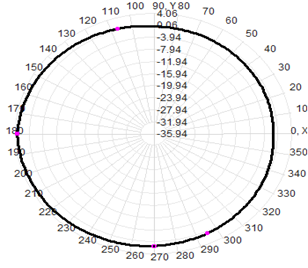

2.3 Radiation Pattern
