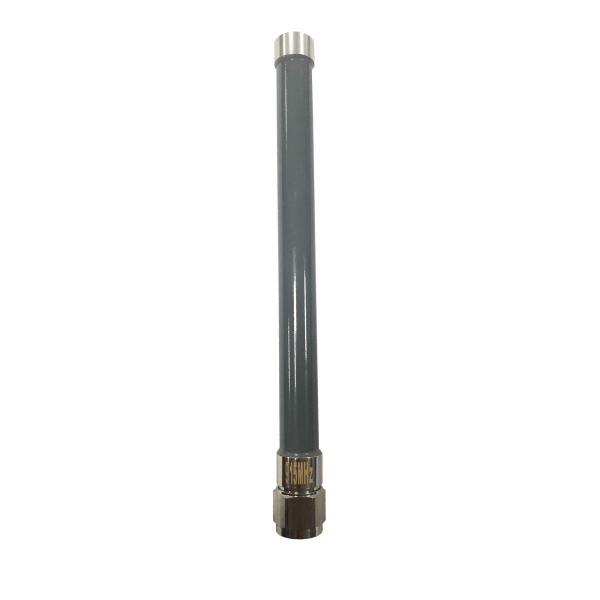

Name: Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10421-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 900-930MHz

VSWR : <1.5

Peak Gain : 2dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	900-930MHz
Impedance	50 Ohm
S.W.R.	<1.5
Gain	2dBi
Efficiency	≈85%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	70°±5°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ16*200mm
Weight	0.09Kg
Radome Materials	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

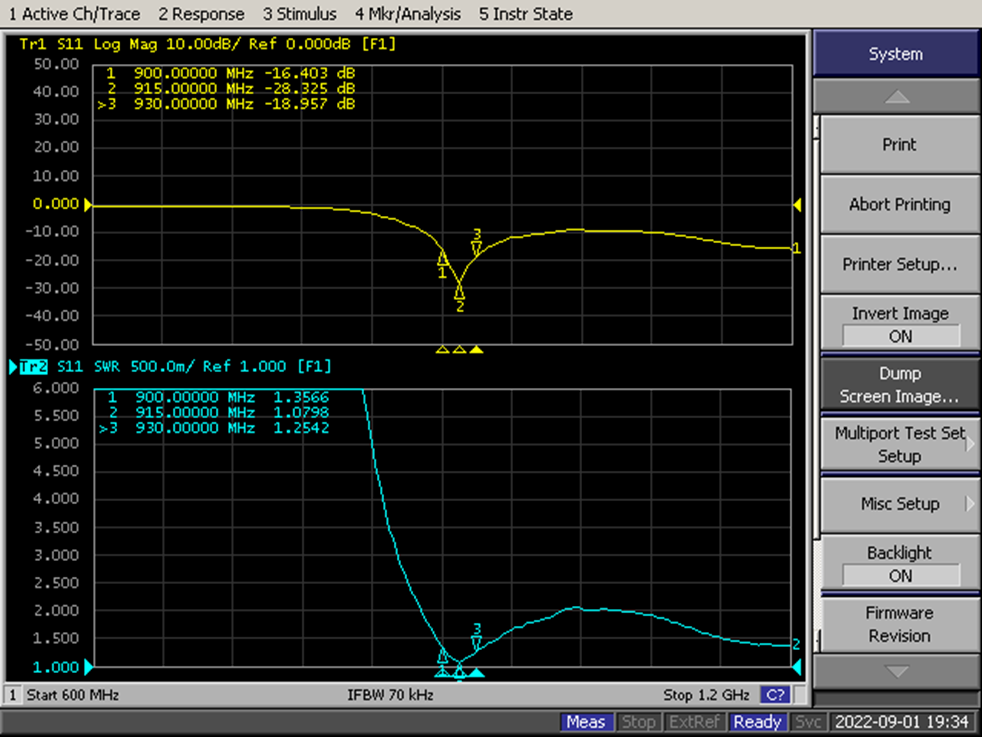

2.1 VSWR
Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna

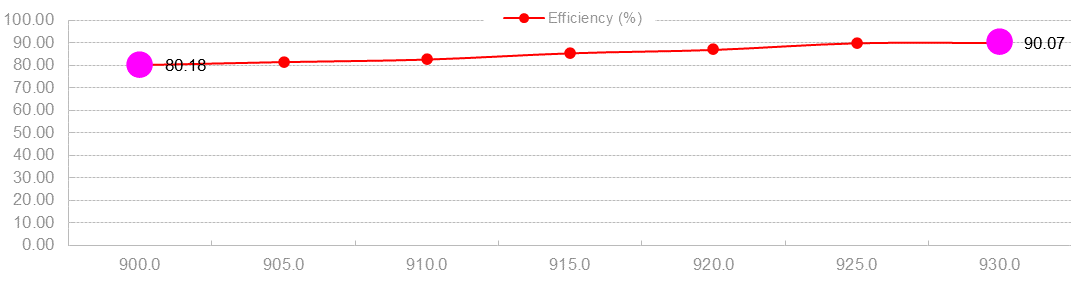

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
