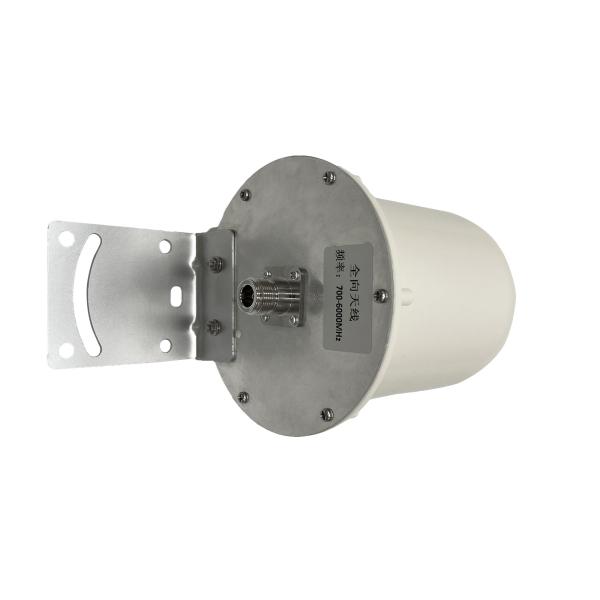

Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz

  • 1
  • 2
  • 3

Brand Name : Leenz

Model Number : LZANT-10765-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 700-6000MHz

VSWR : <2.0

Peak Gain : 5dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency 700-960MHz 1710-6000MHz
S.W.R. <2.0 <2.0
Efficiency ≈70% ≈80%
Antenna Gain 3dBi 5dBi
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 27-32° 27-80°
Impedance 50 Ohm 50 Ohm
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ95*142mm
Weight 0.375Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data

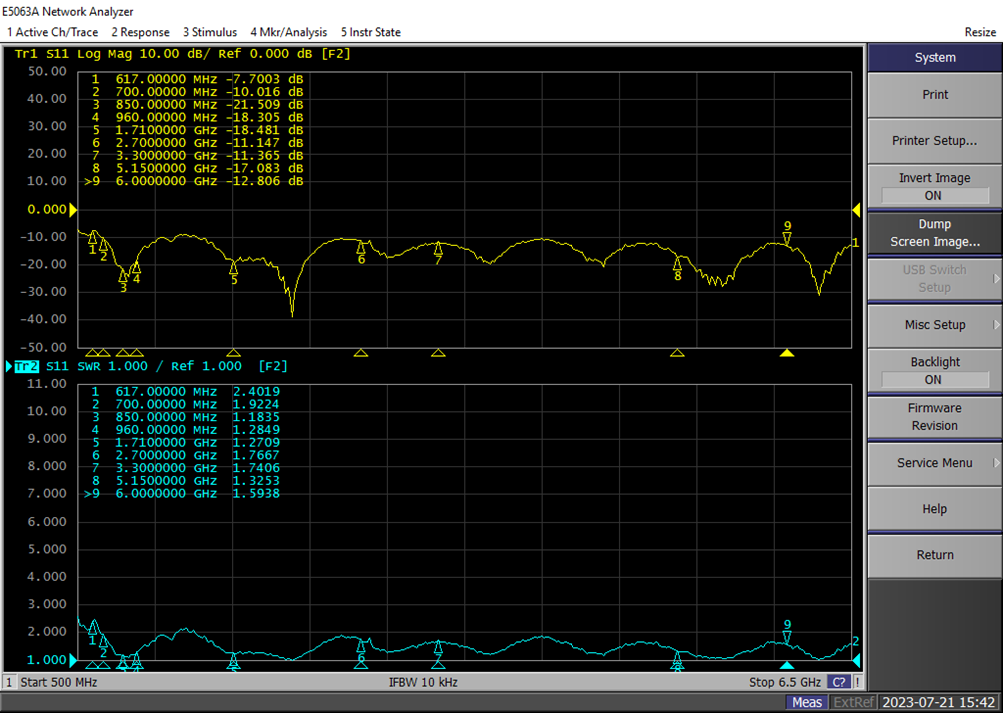

2.1 VSWR
Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz

2.2 Total Efficiency & Gain:

Frequency (MHz) Gain (dBi) Efficiency (%) Frequency (MHz) Gain (dBi) Efficiency (%)
617.0 2.7 54.8 3100.0 4.9 72.8
618.0 2.7 54.5 3200.0 4.9 74.5
619.0 2.6 53.8 3300.0 4.2 76.3
620.0 2.6 53.1 3400.0 4.2 79.2
630.0 3.1 56.8 3500.0 3.4 73.5
660.0 2.5 57.0 3600.0 4.1 83.7
690.0 3.4 61.7 3700.0 4.8 81.2
720.0 3.3 71.7 3800.0 4.9 85.7
750.0 2.8 79.3 3900.0 5.0 84.5
780.0 2.9 83.7 4000.0 5.0 88.0
810.0 3.0 83.9 4100.0 4.8 82.8
840.0 2.9 76.5 4200.0 4.7 84.6
870.0 3.0 71.3 4300.0 4.6 86.7
900.0 3.2 70.6 4400.0 4.6 85.5
930.0 3.3 77.0 4500.0 4.8 85.4
960.0 3.2 80.2 4600.0 4.7 88.8
1700.0 3.3 73.5 4700.0 4.1 86.6
1800.0 3.0 68.2 4800.0 4.0 91.7
1900.0 3.6 73.3 4900.0 3.3 83.8
2000.0 4.3 79.5 5000.0 3.5 82.7
2100.0 4.1 81.6 5100.0 3.4 79.4
2200.0 3.9 79.5 5200.0 2.9 77.0
2300.0 3.2 76.7 5300.0 4.3 83.3
2400.0 3.1 80.2 5400.0 4.0 75.8
2500.0 3.3 77.9 5500.0 4.5 77.2
2600.0 3.8 71.0 5600.0 4.5 75.5
2700.0 3.8 67.1 5700.0 4.8 79.0
2800.0 4.2 73.3 5800.0 4.7 78.9
2900.0 3.8 75.1 5900.0 4.8 82.6
3000.0 4.6 72.3 6000.0 4.7 89.2

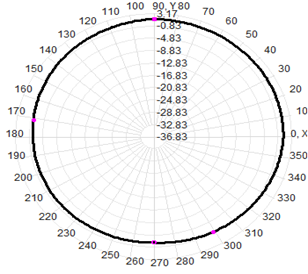

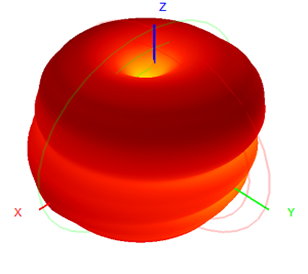

2.3 Radiation Pattern

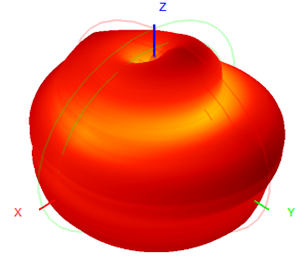

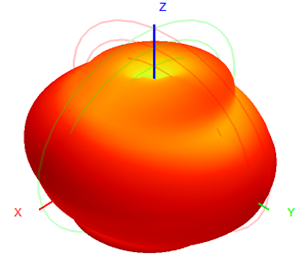

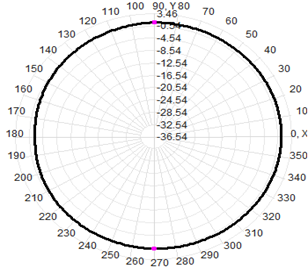

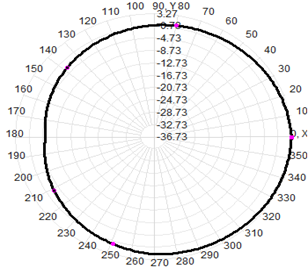

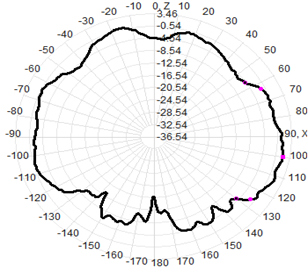

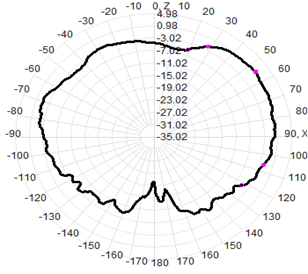

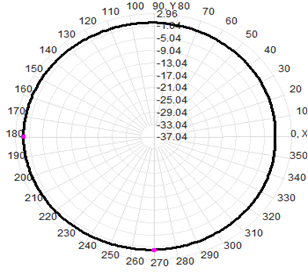

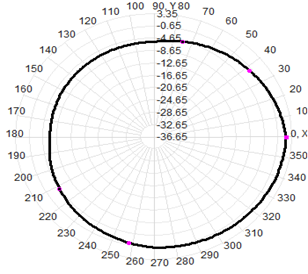

3D 2D-Horizontal 2D-Vertical

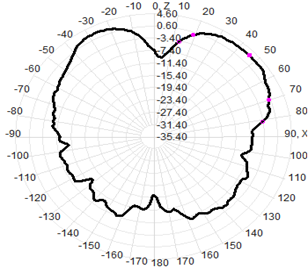

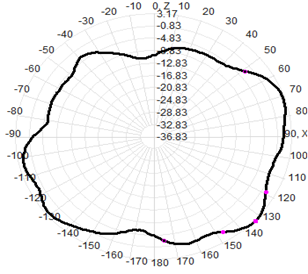

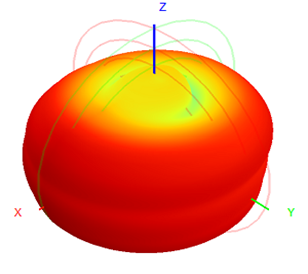

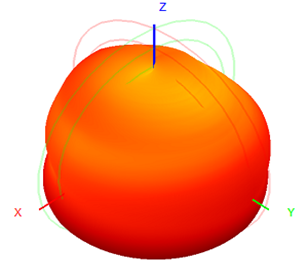

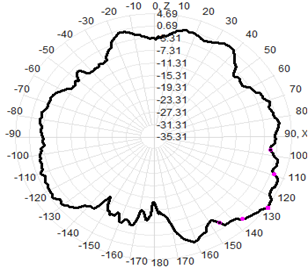

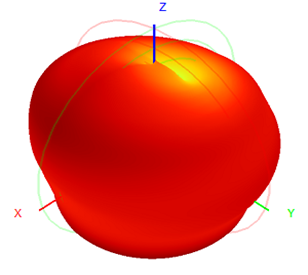

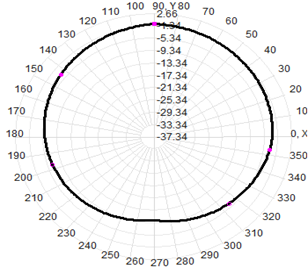

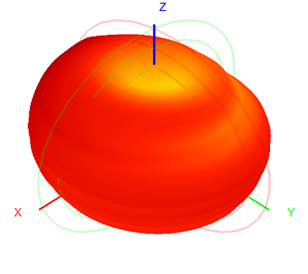

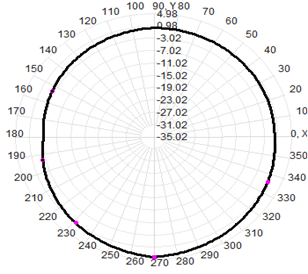

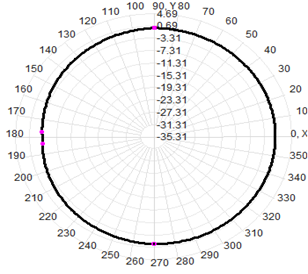

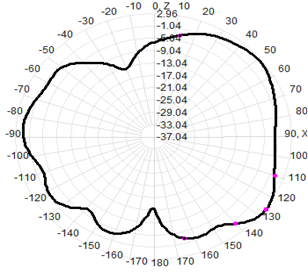

617MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
810MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
960MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz

3D 2D-Horizontal 2D-Vertical

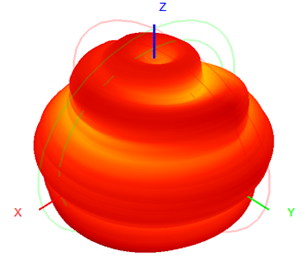

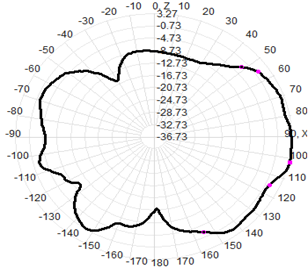

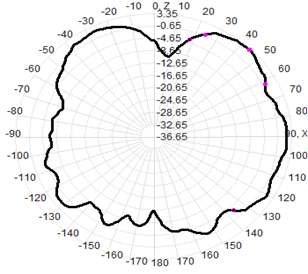

1700MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
2500MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
3000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
3D 2D-Horizontal 2D-Vertical

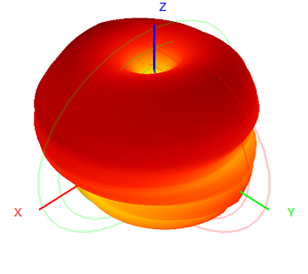

4000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
5000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
