Name: Omni Lte Antenna FRP Antenna Outdoor WIFI 24G Antenna 16x150mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10400-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz

VSWR : <2.0

Peak Gain : 3dBi

Impedance : 50

Contact Now

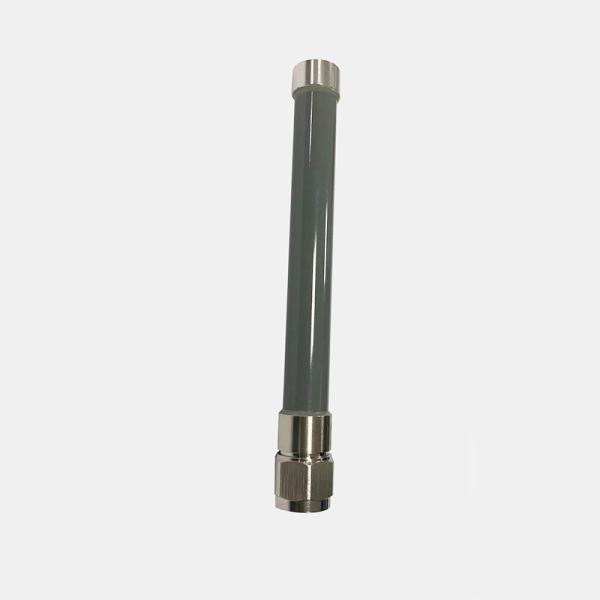

Omni Antenna Fiber Glass antenna FRP Antenna WIFI 2.4G Antenna 16x150mm

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	3dBi
Efficiency	≈79%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	50±5°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N-J connector
Dimension	Φ16*150mm
Weight	0.08Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

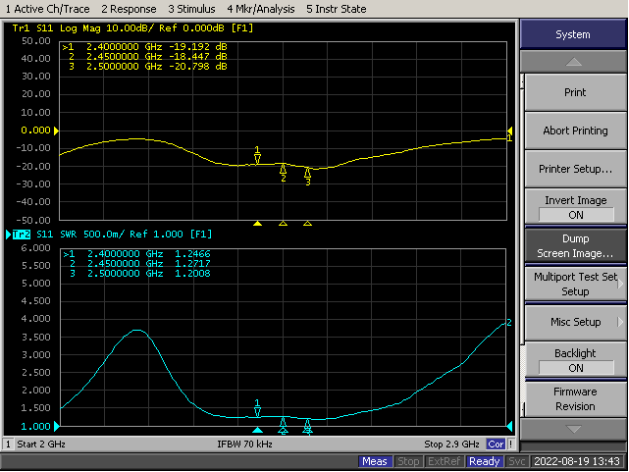

2.1 VSWR

Omni Lte Antenna FRP Antenna Outdoor WIFI 2.4G Antenna 16x150mm

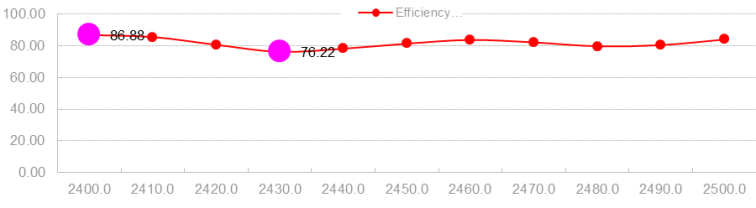

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
