Name: 4G Lte Omni Directional Antenna Waterproof Fiberglass Antenna 16x350mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10260-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 806-960/1710-2700M

VSWR : <2

Peak Gain : 3/6dBi

Impedance : 50

Contact Now

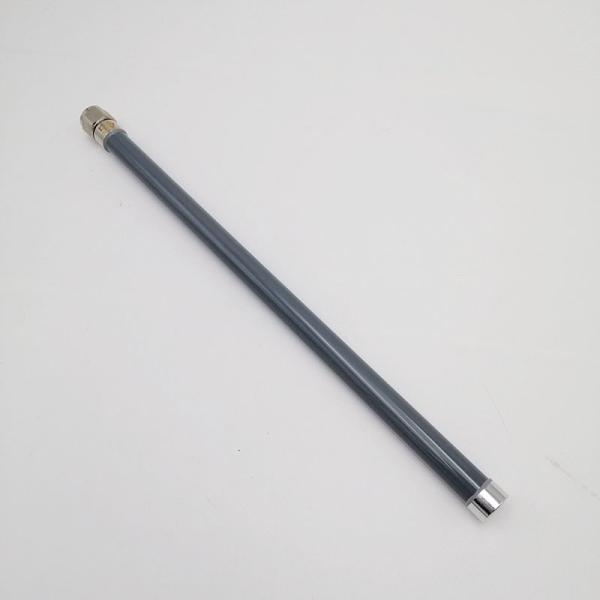

4G LTE omni outdoor AP base station gateway with external waterproof fiberglass antenna 16x350mm
1. Specification

A. Electrical Characteristics
Frequency	806-960MHz	1710-2700MHz
Impedance	50 Ohm	50 Ohm
S.W.R.	<2	<2
Gain	3dBi	5dBi
Efficiency	≈70%	≈70%
Polarization	Linear	Linear
Horizontal Beamwidth	360°	360°
Vertical Beamwidth	80°	30°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Male
Dimension	Φ16*350mm
Weight	0.11Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85˚C
Storage Temperature	- 40 ˚C ~ + 85˚C

2. Antenna - S Parameter Test Data

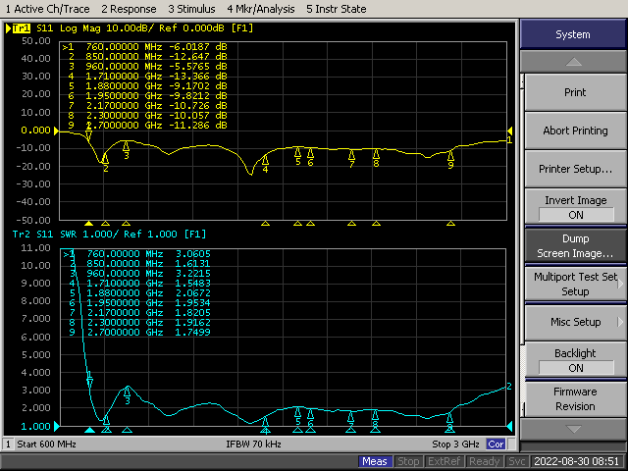

2.1 VSWR
4G Lte Omni Directional Antenna Waterproof Fiberglass Antenna 16x350mm

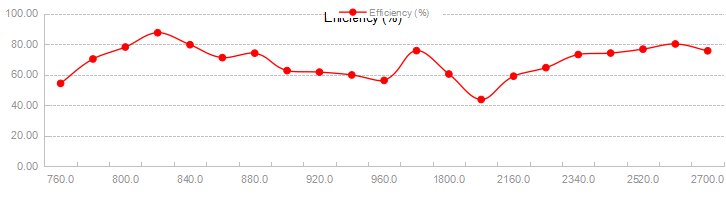

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
