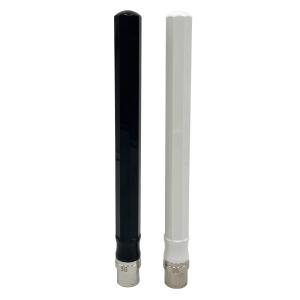

N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External

Brand Name : Leenz

Model Number : LZANT-10455-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 617-960/1710-6000MHz

VSWR : <4.0

Peak Gain : 5dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency 617-960/1710-6000M
Impedance 50 Ohm
S.W.R. <2
Gain 5dBi
Efficiency ≈70%
Horizontal Beamwidth 360°
Vertical Beamwidth 48-61°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N Male
Dimension Φ24*240mm
Weight 0.1Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

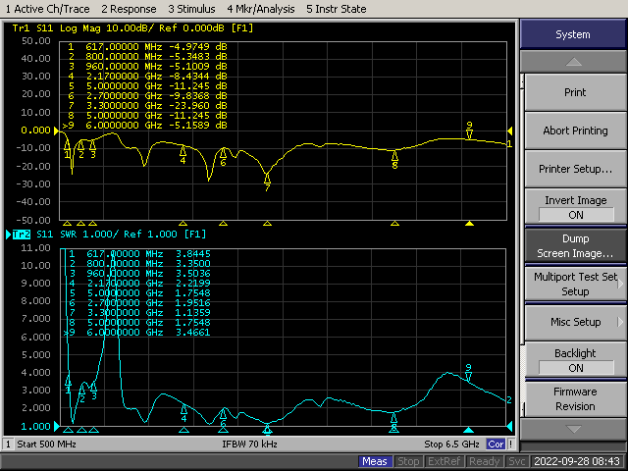

2.1 VSWR

N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External

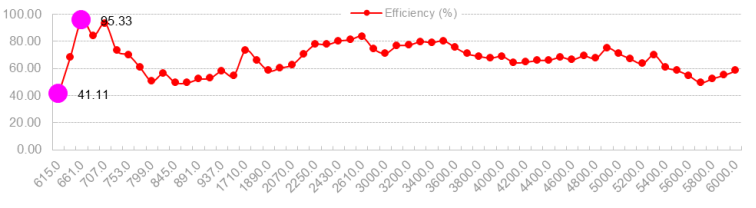

2.2 Total Efficiency & Gain:

N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External

Frequency (MHz) 615 638 661 684 707 730 753 776 799 822 845 868 891 914 937 960
Gain (dBi) -1.05 1.24 2.39 1.82 2.11 1.10 0.73 0.35 -0.02 0.48 0.18 0.42 1.22 2.06 3.16 3.49
Efficiency (%) 41.11 68.01 95.33 84.33 93.23 73.23 70.07 60.80 50.84 56.58 49.88 49.52 52.26 53.02 58.26 54.79

Frequency (MHz) 1710 1800 1890 1980 2070 2160 2250 2340 2430 2520 2610 2700
Gain (dBi) 4.59 1.96 0.72 0.87 1.04 1.97 2.32 2.64 2.99 3.67 4.33 3.83
Efficiency (%) 73.27 66.27 58.41 60.53 62.74 70.61 77.78 77.61 80.34 81.31 83.53 74.49

Frequency (MHz) 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500
Gain (dBi) 1.36 1.76 2.32 3.56 4.60 4.94 4.97 4.69 4.36 4.21 4.07 4.76 4.22 5.05 5.42 5.36
Efficiency (%) 71.26 76.72 77.24 79.84 79.25 80.38 75.40 70.94 69.12 67.85 69.00 64.55 64.78 66.07 66.20 68.43

Frequency (MHz) 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000
Gain (dBi) 5.12 5.27 5.17 4.81 4.22 4.18 4.33 4.67 4.05 3.85 3.41 2.89 3.68 4.00 4.51
Efficiency (%) 66.56 69.40 67.52 75.09 70.86 67.01 63.70 69.98 61.14 58.62 54.75 49.72 52.69 55.13 58.49

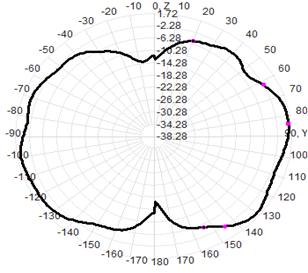

2.3 Radiation Pattern

3D

2D-Horizontal

2D-Vertical

615MHz


N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External

 N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
684MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
730MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
3D 2D-Horizontal 2D-Vertical
822MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
868MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
960MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
3D 2D-Horizontal 2D-Vertical
1710MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
2160MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
2700MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
3D 2D-Horizontal 2D-Vertical
3300MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
4800MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
6000MHz N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External N Male 3G 4G 5G Full Band 617-6000M Omnidirectional Antenna Outdoor Base Station Gateway Router External
