Name: 6268GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10452-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 6200-6800MHz

VSWR : <2.0

Peak Gain : 2.5dBi

Impedance : 50 OHM

Contact Now

6.2-6.8GHz Embedded Antenna FPC Antenna MHF1 plug

1. Specification

A. Electrical Characteristics
Frequency	6200-6800MHz
S.W.R.	<= 2.0
Antenna Gain	2.5dBi
Efficiency	≈53%
Polarization	Linear
B. Material & Mechanical Characteristics
Cable Type	RF1.13 Cable, 100mm
Connector Type	I-PEX MHF1 Plug
Dimension	6.4x19.2mm
Weight	0.001Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 65 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug

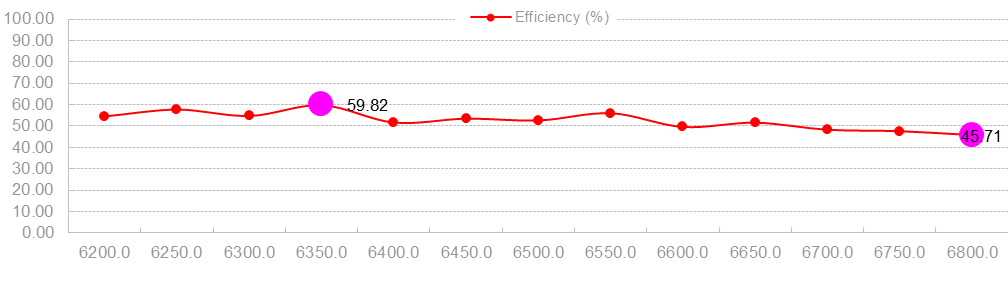

2.2 Total Efficiency & Gain:

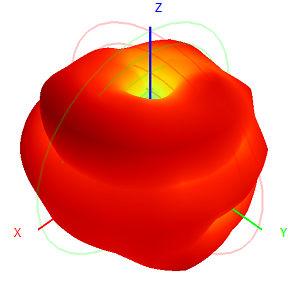

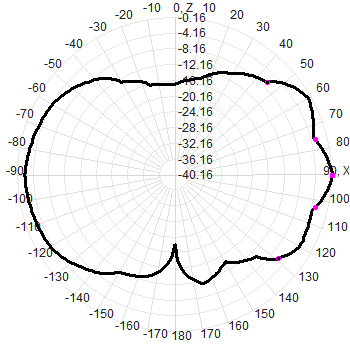

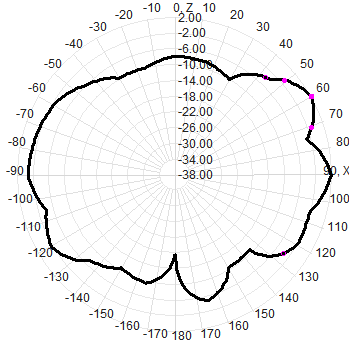

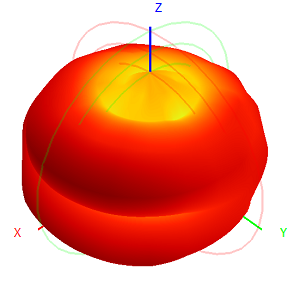

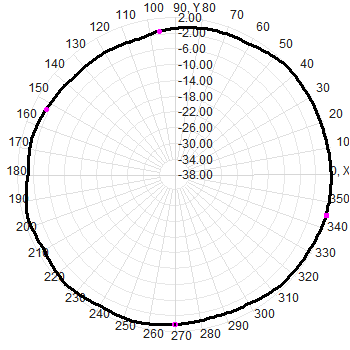

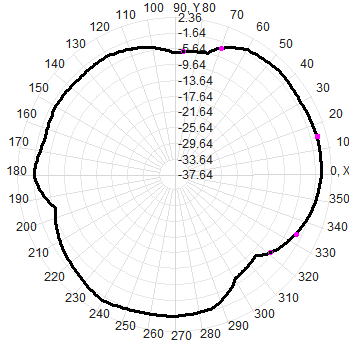

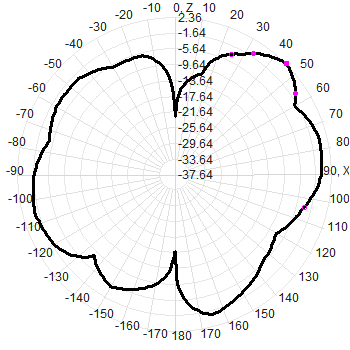

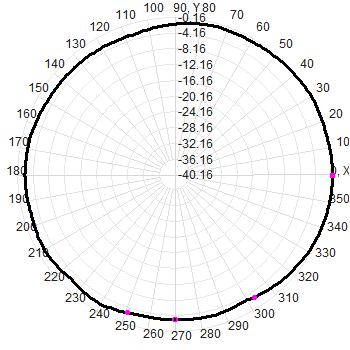

2.3 Radiation Pattern
