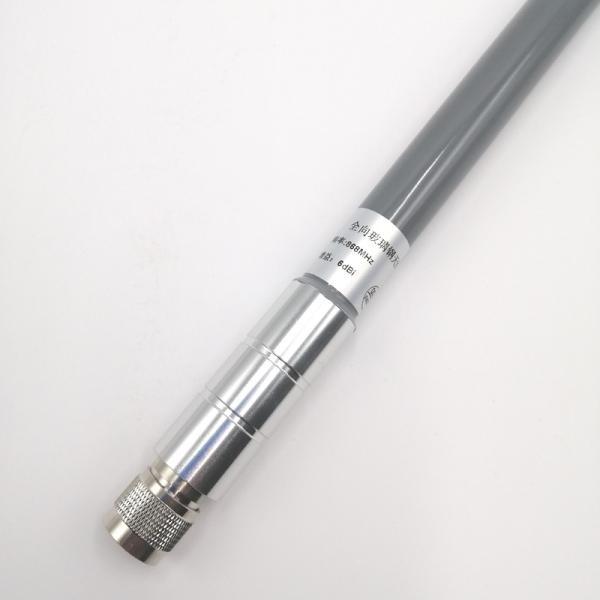

Name: 868M 5dbi External Directional Antenna Fiberglass Waterproof
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10088-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 868MHz

VSWR : <2.0

Peak Gain : 5dBi

Impedance : 50

Contact Now

Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 824-894MHz Antenna 868MHZ Antenna 2dBi 20x250

1. Specification

A. Electrical Characteristics
Frequency	868MHz
Impedance	50 Ohm
S.W.R.	<2
Gain5	dBi
Efficiency	≈91%
Horizontal Beamwidth	360°
Vertical Beamwidth	30±5°
Polarization	Linear
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ20*600mm
Weight	0.25Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

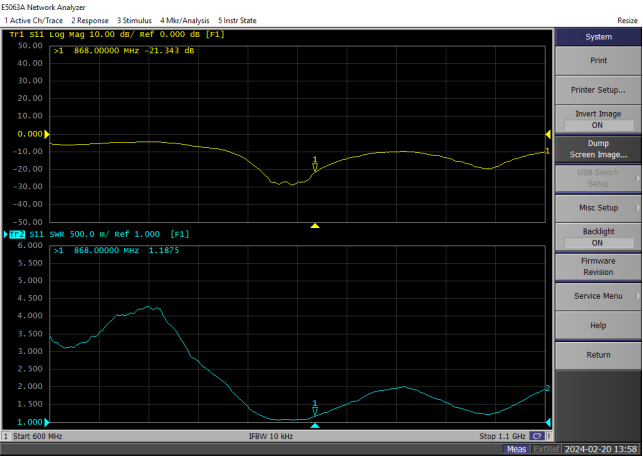

2.1 VSWR

868M 5dbi External Directional Antenna Fiberglass Waterproof

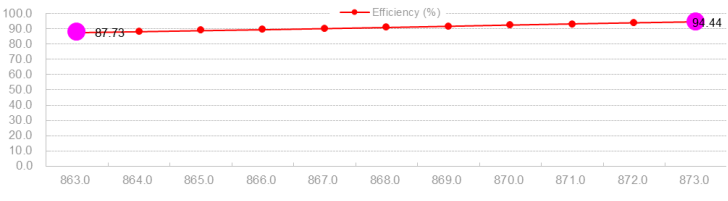

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
