Name: 1dBi Peak Gain 433MHz Fiberglass Antenna SMAJ 433M 16x200mm Omnidirectional
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10327-B

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 433MHz

VSWR : <2.0

Peak Gain : 1dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency		433MHz
VSWR		< 2.0
Efficiency		≈50%
Peak Gain		1dBi
Impedance		50 Ohm
Polarization		Linear
Horizontal Beamwidth		360°
Vertical Beamwidth		50±5°
T90(H) roundness		±2
Max Power		50W
B. Material & Mechanical
Connector Type	SMA-J
Dimension	Φ16*200±5mm
Weight	0.06Kg
Radome material	Fiberglass (grey)
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	Dc grounding

2. Antenna - S Parameter Test Data

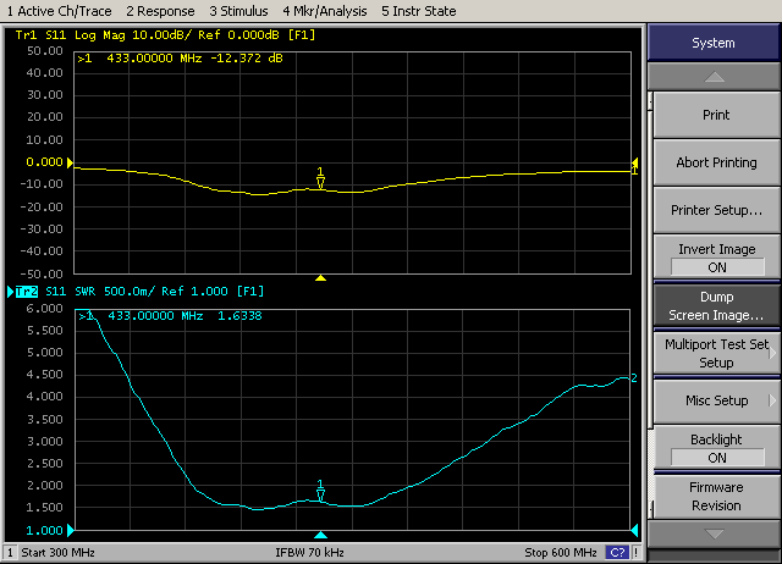

2.1 VSWR

1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional

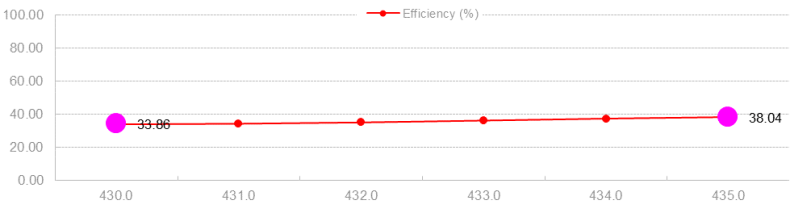

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
